XINCHI • Professional Gearbox for Palm Oil Equipment

Focused · Professional · Reliable

We only manufacture gearboxes for palm oil machinery: Sterilizing, Threshing, Digesting, Pressing, Conveying, Crushing & Refining.

Our Strength

  • Years of deep experience in palm oil industry.
  • Heavy-duty, high-temperature & humidity resistant, long service life.
  • Perfect for continuous, harsh working conditions.
  • Trusted by top palm oil equipment makers & mills.

Your Value

  1. Less downtime · Higher efficiency · Lower cost · Longer lifespan.
  2. Stable transmission = Stable production = Higher profit.
  3. XINCHI · Your Best Gearbox Partner.
  4. Powering Palm Oil Industry Worldwide.

Performance Configuration

Technical Data
Press Tonnage Gear Unit Mechanical power rating(kW) Mechanical torque rating(kNm) Exact ratio Speed(rpm)
@N1=1000rpm @N2=750rpm @N1=1000&750rpm N1/N2 N1/N2
P15 M3SF50SPD 90 68 48 55.39 1000/18 750/13.5
P15 M3SF50SPD 60 45 45 78.45 1000/12.7 750/9.56
P20 M3SF60SPD 139 105 74 55.43 1000/18 750/13.5
P20 M3SF60SPD 95 71 70 77.37 1000/12.9 750/9.69

Technical Data
Digester Volume Gear Unit Mechanical power rating(kW) Mechanical torque rating(kNm) Exact ratio Speed(rpm)
@N1=1500rpm @N1=1500rpm N1/N2
P15 P3CSV250 72 48 57.32 1500/26.2

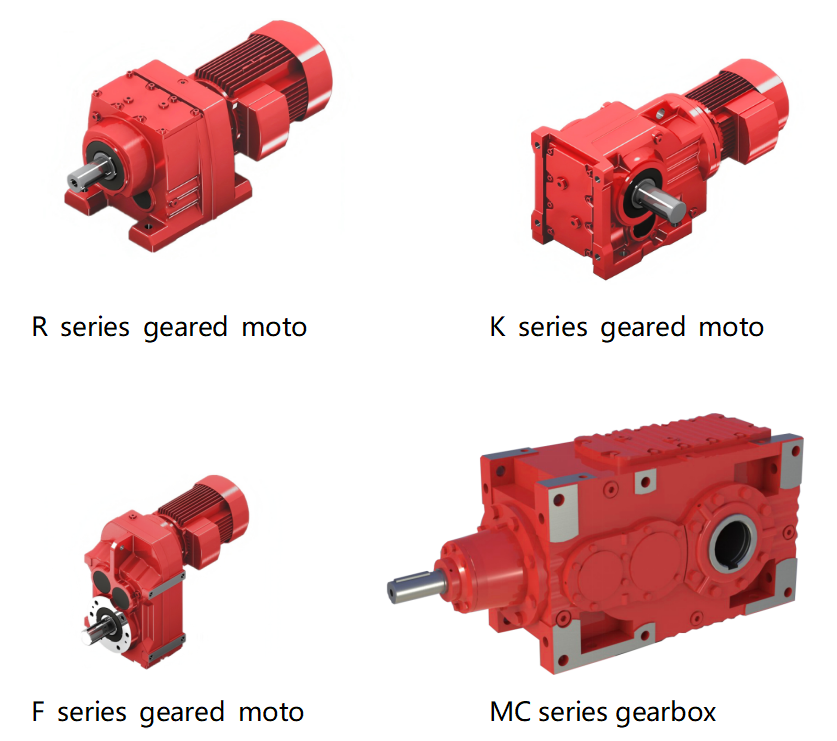

H Series Industrial Gearbox
